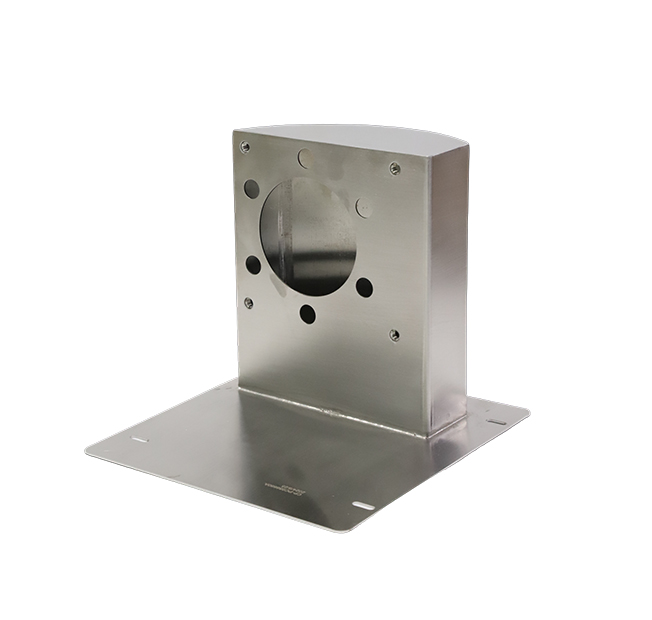

Sheet Metal Power Distribution Box Processing

Sheet metal power distribution boxes are essential components in electrical systems, providing secure housing for circuit breakers, switches, and wiring. The processing of these boxes involves a series of precision techniques to ensure durability, protection, and functionality.

The process begins with material selection, typically galvanized steel or stainless steel, chosen for their corrosion resistance and structural strength. These materials are cut to size using laser cutting or plasma cutting, ensuring precise dimensions that align with industry standards (e.g., IP65 for dust and water resistance). CNC punching is then used to create holes for cable entries, mounting brackets, and ventilation, with tolerances as tight as ±0.1mm to ensure proper fitment of internal components.

Bending is a critical step, where the sheet metal is formed into the box’s rectangular or custom shape using press brakes. This step requires careful calibration to avoid cracks or warping, especially for thicker gauges (1.5mm to 3mm). Welding or riveting joins the corners, creating a seamless, rigid structure. For enhanced protection, the boxes undergo surface treatments such as powder coating (in colors like RAL 7035 for industrial use) or galvanization, which adds a protective layer against rust and environmental damage.

Internal features are added to optimize functionality, including mounting rails (DIN rails) for electrical components, cable management clips, and grounding points. These features are precisely positioned to ensure compatibility with standard electrical hardware. Quality control involves pressure testing to verify waterproofing and electrical continuity checks to confirm safe operation.

Sheet metal power distribution boxes are tailored to diverse applications, from residential switchboards to industrial control panels, with customizations in size, ingress protection, and internal layout. Their robust processing ensures they withstand harsh environments, making them reliable safeguards for electrical infrastructure.
